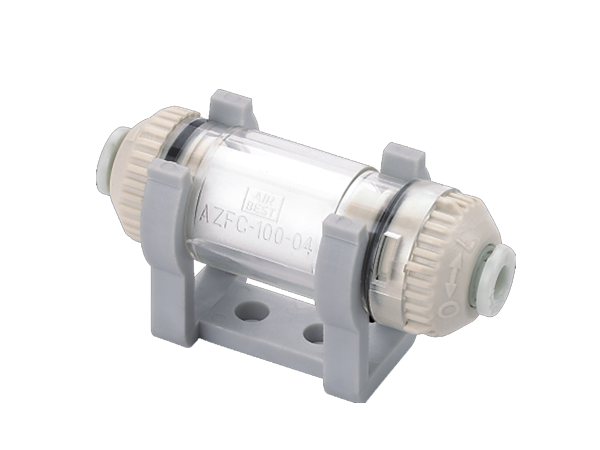

Features
◇ Straight through design, one touch fitting and with bracket, easy installation .
◇ Small size and light weight.
◇ Transparent housing, easy to indicate degree of contamination.
◇ Filter element is replaceable.

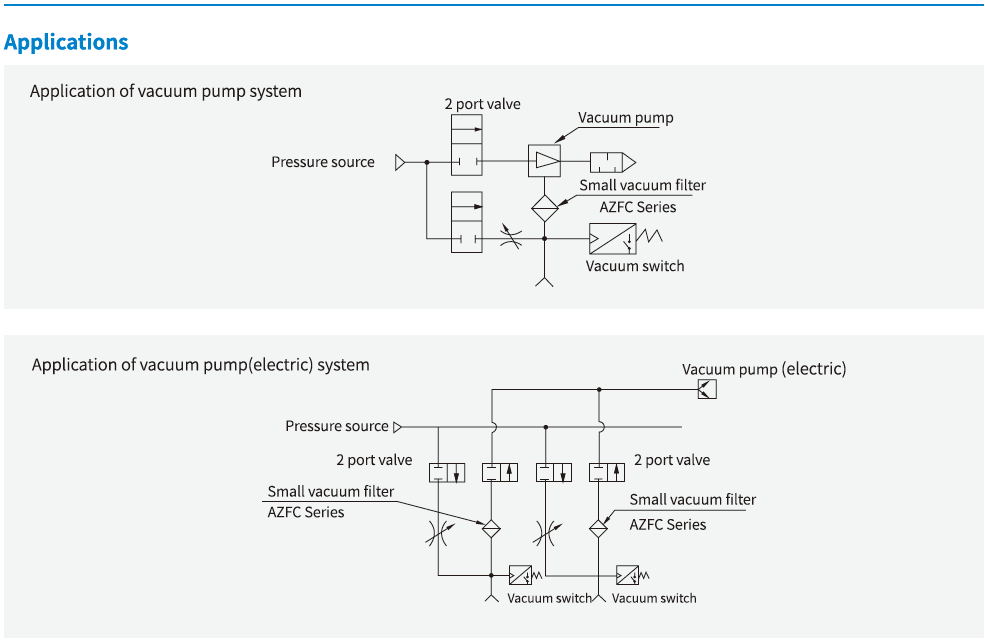

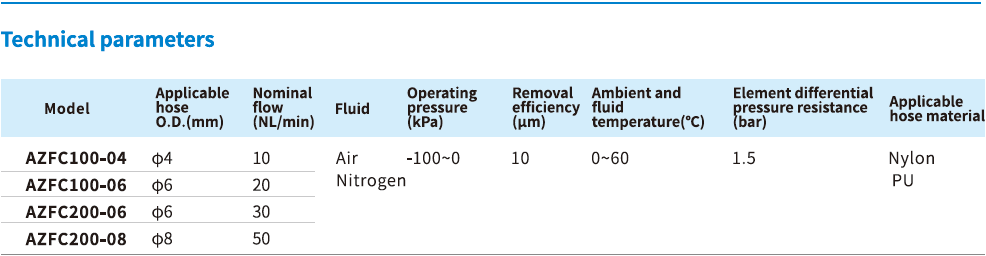

Application
◇ Suitable for vacuum system with light or medium dirt level.
| How to order | |||
| AZFC 100-04 U ① ② ③ ④ | |||
| ①Series | ② Vacuum flow | ③ Hose outer dia. | ④ Bracket |
| AZFC | 100 - Max 20NL/min 200 - Max 50NL/min | 04 -φ4Hose 06 -φ6Hose 08 -φ8Hose | U - Standard, with bracket |
| Selection | |||||
| Model | Size | Hose outer dia | Bracket U | ||
| 4 | 6 | 8 | |||
| AZFC | 100 | ● | ● | ● | ● |
| 200 | - | ● | - | ● | |

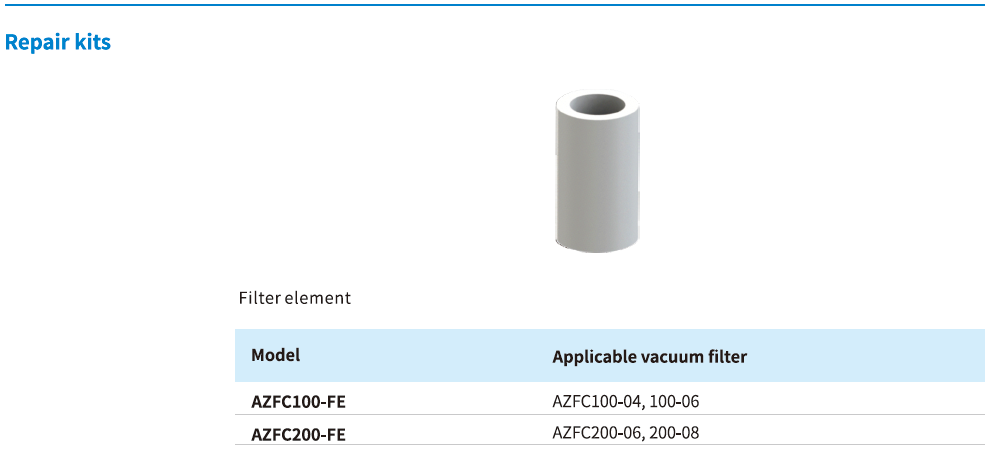

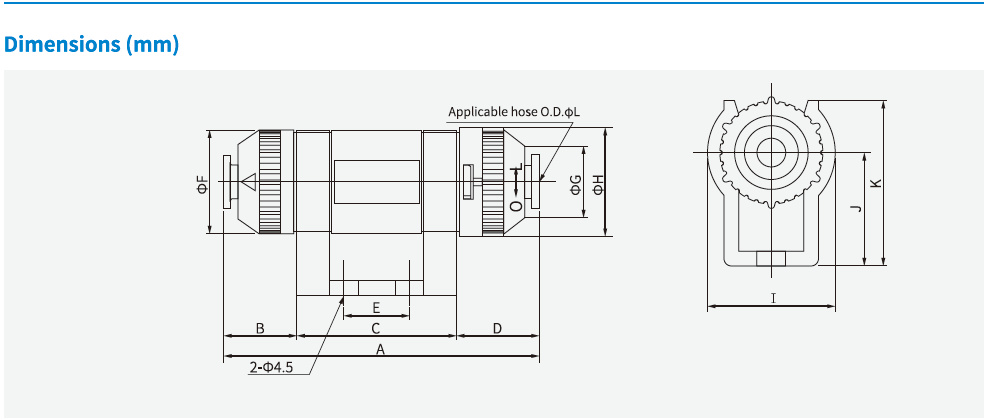

| Model/Size | A | B | C | D | E | F | G | H | I | J | K | L |
| AZFC100-04U | 53.2 | 9.1 | 30 | 14.1 | 10 | 18 | 11.6 | 19.5 | 23 | 20 | 29 | 4 |
| AZFC100-06U | 53.2 | 9.1 | 30 | 14.1 | 10 | 18 | 11.6 | 19.5 | 23 | 20 | 29 | 6 |
| AZFC200-06U | 67 | 15.5 | 34 | 17.5 | 14 | 22 | 15.6 | 23.1 | 27 | 24 | 35 | 6 |
| AZFC200-08U | 67 | 15.5 | 34 | 17.5 | 14 | 22 | 15.6 | 23.1 | 27 | 24 | 35 | 8 |
